Product introduction:

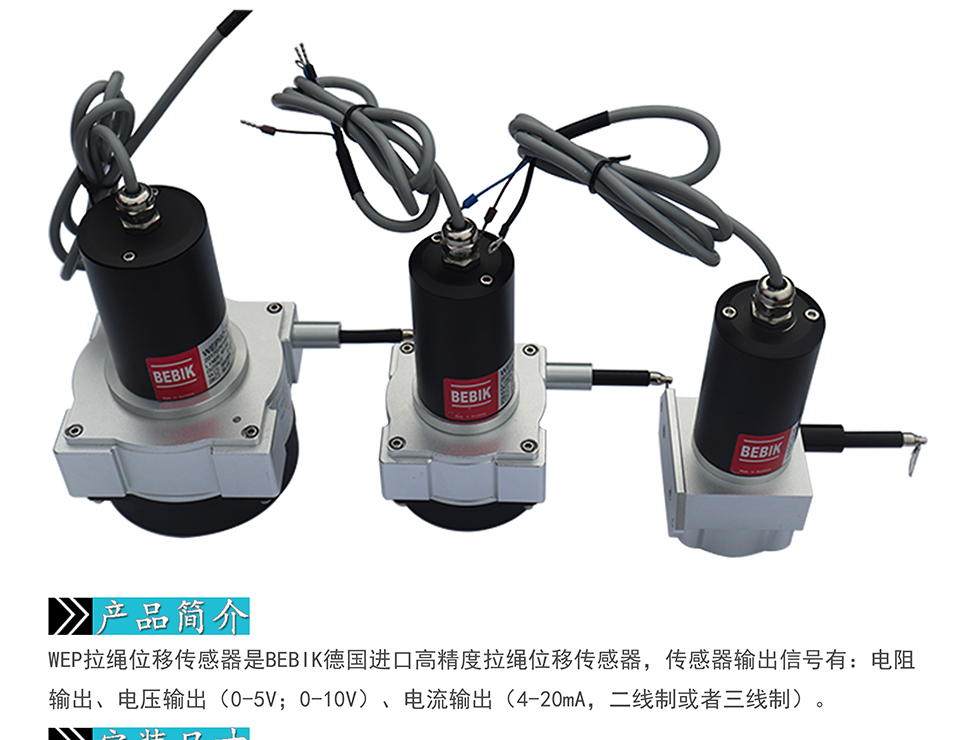

Milont WEP cable displacement sensor is BEBIK Germany imported high-precision cable displacement sensor, the output signal of the sensor include: resistance output, voltage output (0-5V;0-10V), current output (4-20mA, two-wire or three-wire system).
Application area：
It is mainly applicable to:?Storage position location, the opening of the gate is dam protection, control, pressure machinery, paper machinery, textile machinery, sheet metal machinery, packaging machinery, printing machinery, level control instrument, construction machinery, industrial robots, injection machines, woodworking machinery, elevators, air compressor, hydraulic press, height of machine, x-y axis length displacement, level measurement and other automation measurement occasions.
Wiring instructions：
Sensor type |
Wiring color |
Connection mode |
Sensor type |
Wiring color |
Connection mode |
Resistance output type (5K / 10K) |
Brown |
DC 5V/10V |
?current output type (two?wire system) |
Brown |
DC 15-24V |
Blue |
0V |
Black |
?output |
||
Black |
Output |
Shielding wire |
Ground |
||
Shielding wire |
Ground |
Voltage output type / current output type (four wire system) |
Red |
DC 15-24V |
|
|
Voltage output type / current output type (three?wire system) |
Brown |
DC 15-24V |
Green |
0V |
|
Blue |
0V |
Black |
Positive?output |
||
Black |
Output |
White |
Negative?output |
||
Shielding wire |
Ground |
Shielding wire |
Ground |
